Plant overview

This is overview of blocks. There are stacks which is 3 stacks from right is 1st block, 3 stacks at center is 2nd block, and last 3 stacks far away in picture is the 3rd block. The stack is attached with HRSG or Heat Recovery Steam Generator. The building below is the BSDG or Black Start Diesel Generator using as support produced 5MW only.





This is ST or Steam Turbine unit. The most left is the HP or High Pressure steam turbine. The center compartment (attach with big pipe) is the LP or Low Pressure steam turbine. The most right (written SEV) is the generator to produce electricity.

 This is the Gas Turbine unit. The left in the picture (allign like fish bone) is the VIGV or Variable Inlet Guide Vane, function as gate to control amount of air enter the compressor. The center (white in colour) is the 21th stages compressor. After that to the right (full with pipes) is the combustor where combustion process happen. The most right is the 5th stages gas turbine.

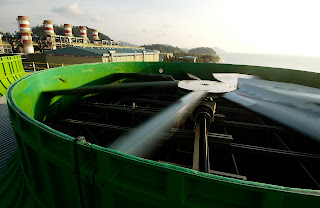

This is one of the cooling fan out of ten colling fan at the top of cooling tower.
